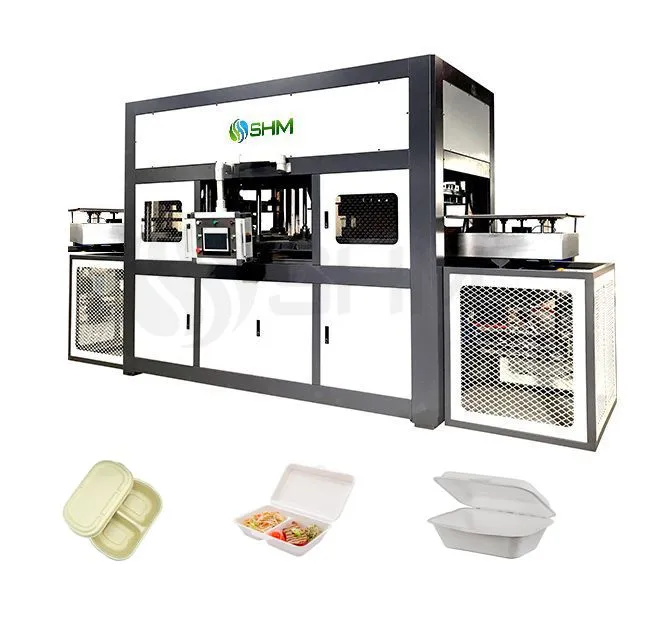

SHM's pulp molding equipment is designed to efficiently produce eco-friendly bamboo compostable plates through an advanced pulp molding process. The system converts bamboo fiber pulp board into high-quality, biodegradable bamboo paper plates using a fully automated process.

The production begins with fiber pulping, where bamboo is refined into a uniform pulp mixture. The pulp forming machine then shapes the plates with precision molds, followed by hot pressing to enhance durability and resistance to moisture and grease. The final products undergo trimming and quality inspection to meet food-grade standards.

With SHM’s cutting-edge technology, businesses can achieve sustainable packaging solutions while ensuring high production efficiency, minimal waste, and superior product quality.

SHM high end disposable bamboo plates manufacturing process mainly included:

Pulping--Forming--Hot Pressing--Trimming and Finishing--Packaging

SHM Z1150 Pulp Molding Equipment Technical Data

• Model: ZMC-Z1150

• Forming machine power: 140 KW

• Capacity: 800-1000KG/day

• Mould platen size: 1150×1150 mm

• Moving distance of hot-pressing mold: 400 mm

• Minimum shut height of hot-pressing mold: 120 mm

• Up forming platen moving distance: 750 mm

• Down forming platen moving distance: 250 mm

• Voltage: 380V

• Pressure of compressed air: minus 0.04 - minus 0.06 Mpa

• Control method: PLC, touch screen

• Drying method: thermal forming.

• Molds material: 6061 alloy aluminium.

Bamboo Plates Pulp Molding Equipment Applications:

SHM Pulp Molding Equipment Factory:
